Adiabatic Cooling
AiolosAir® HybriCool Flat Adiabatic Cooling Klimageräte sind ideal für eine 100%ige Frischluftzufuhr in Büros, Cafeterias, Sporthallen, Schulen, Geschäften, Gemeinschafts- und Wohnräumen.
Die Räume und Aufenthaltszonen werden mit aufbereiteter Frischluft versorgt.

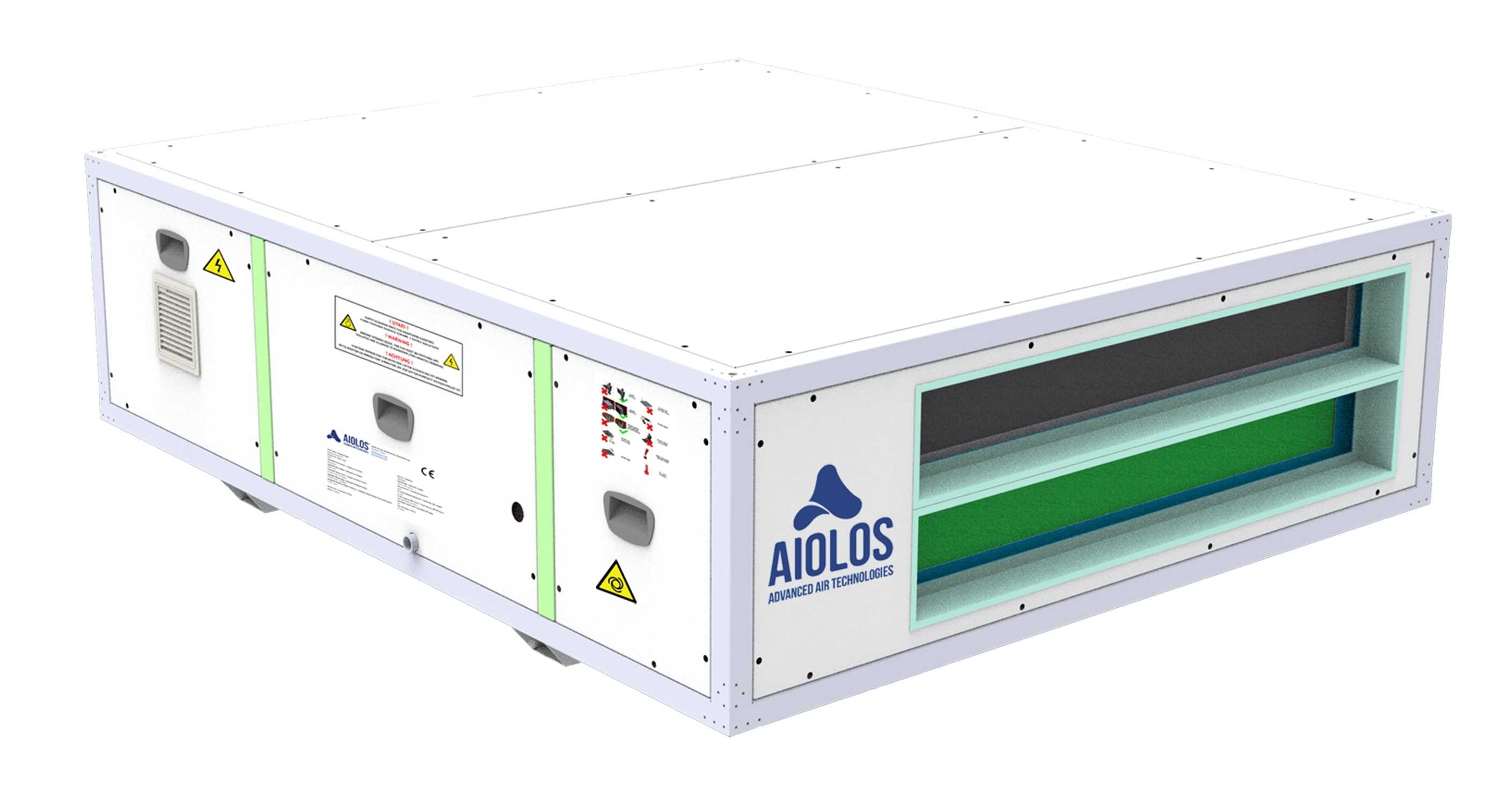

HybriCool Flat Adiabatic Cooling Air Conditioning
Units cool the 100% fresh air taken from outside with natural cooling by using
the evaporation energy of the water. In addition to natural cooling, it does
not need any other device in the place where it is used, with an integrated
compressor, condenser and evaporator in order to meet the indoor cooling need.
By heating with cooling and heat pump, it can meet the air conditioning of the
environment with 100% fresh air alone.
It is possible to use the HybriCool Flat Air
Conditioning Unit with the cooler and / or heater battery added to the unit in
places with a central system cooling group and / or hot water supply.
Especially in use for heating purposes, a steam humidifier can be added to
provide indoor comfort humidity conditions.
Working
Principle
Evaporative cooling (EC) technology is based on heat
and mass between air and cooling water. Direct evaporative cooling (DEC)
relies on mechanical and thermal contact between air and water, whereas
indirect evaporative cooling (IEC) is heat and mass transfer between two
air streams separeted by a heat transfer surface where only air is
cooled, and a wet surface where both air and water are cooled. These two
air streams do not mix.
The HybriCool-Flat Indirect Evaporative Cooling Air
Conditioning Unit cools the supply air in Hybrid Mode to support the
design requirements. With the help of Indirect Evaporative Cooling (IEC),
as a pre-cooler, the supply air is cooled down to a certain temperature
and with the integrated DX refrigerant cooling, the additional cooling
requirement is met to obtain the required cooling capacity. Thanks to
demand-controlled DX cooling, the compressor only runs when needed.
Aiolos Air HybriCool
Flat Air Conditioning Unit offers you the most suitable solution according to
your purpose and place;
Standard Equipment
Optional Equipment
All these features and much more of the HybriCool Flat
Adiabatic Refrigerated Air Conditioning Units, can be integrated into the
building automation with the help of internal sensors in the unit, as well as
remotely monitored, managed and turned on and off with phones, tablets and all
computers. In addition to all these, you can see the pollution status of the
filters, create daily - weekly - monthly and annual reports, save data and
access many more data related to the unit via this internal and unique
automation software
HybriCool Flat
Application Areas
In all indoor places that need
fresh air HybriCool Flat offers you comfort with energy efficient air
conditioning.
HybriCool Flat
Application Areas

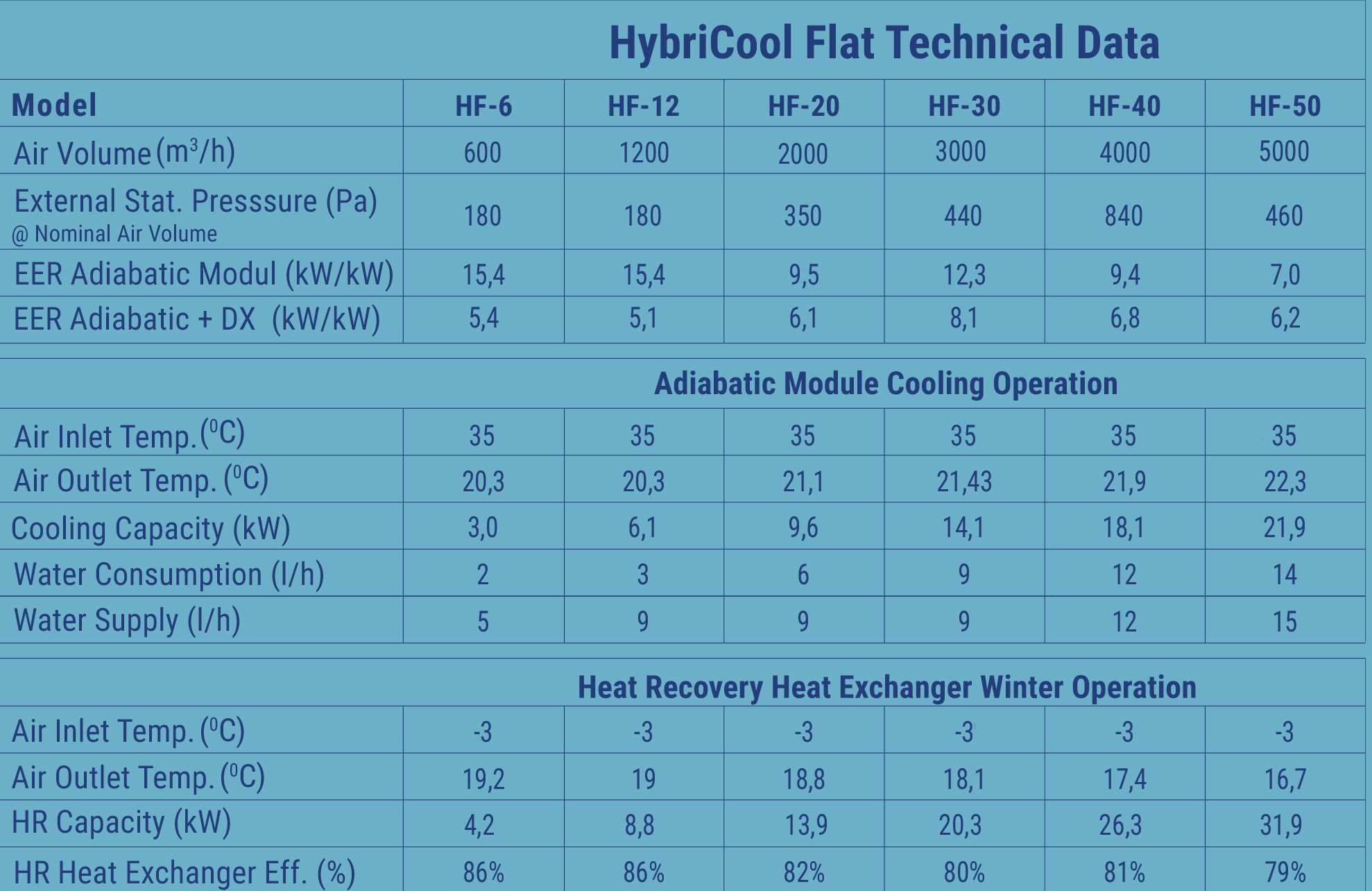

HF-06 - 600 m³/h
HF-12 - 1200 m³/h
HF-20 - 2000 m³/h
HF-30 - 3000 m³/h
HF-40 - 4000 m³/h
HF-50 - 5000 m³/h

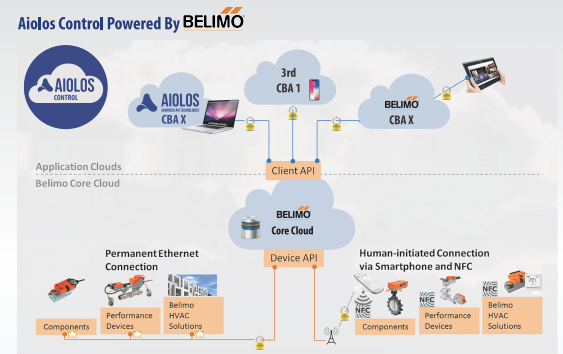

HybriCool Flat Remote
Control
HybriCool units are
ready for remote monitoring and operation via web-based software and IoT
technology. You can operate your unit either with your smart phone, tablet PC
or with your computer. Connection to your local BMS system is also possible
depending on your protocol.
Web-based communication gives
us to monitor your unit with our technicians 24h / 365 days and able to get
alarms directly. We offer you preventive maintenance service, to serve your
unit when we get any alarms, before any malfunction. We reduce your service, spare
part and maintenance cost in efficient way to sustain high performance
operation of the unit. If any support or maintenance needed at site, with the
help of remote monitoring feature, we can detect the fault of the unit in our
customer support centre and report it to our aftersales service technicians to
give support at site in fast and efficient way
